Item

RC-GL3004(V3)

RC-GL3008(V3)

Switching Capacity

63Gbps

78Gbps

Forwarding Capacity(Ipv4/Ipv6)

50.592Mpps

65.472Mpps

Service Port

4*PON port, 4*GE COMBO port, 2*10GE SFP+ port

8*PON port, 4*GE COMBO port, 2*10GE SFP+ port

Redundancy Design

Dual power supply

Support double AC input, double DC input and AC+DC input

Power Supply

AC: input 90～264V　47/63Hz;

DC: input -36V～-72V;

Power Consumption

50W

Dimensions (Width x Depth x Height)

437mm×44mm×280mm

Weight (Full-Loaded)

≤5KG

Environmental Requirements

Working temperature: -10°C～55°C

Storage temperature: -40°C～70°C

         Relative humidity: 10%～90%, non-condensing

Item

RC-GL3004/RC-GL3008(V3)

PON Features

ITU-TG.984.x;

SN/Password/SN+Password/LOID/LOIDPassword/LOID+LOID Passwordauthentication modes;

Terminal access up to 60km on a single fiber;

1:64 split ratio on single PON port, scalable to 1: 128 split ratio;

DBA algorithm, and the particle is for 64Kbit/s;

Standard OMCI management function;

ONU batch software upgrade;

PON port optical parameter detection;

L2 Features

MAC

MAC Black Hole;

Port MAC Limit;

32K MAC (packet exchange chip cache 2MB );

VLAN

4K VLAN entries;

Port-based VLAN classification;

Uplink static QinQ and flexible QinQ(Stack VLAN);

Uplink VLAN Swap and VLAN Remark;

GVRP;

Spanning Tree

STP/RSTP/MSTP;

Remote loop detecting;

Port

Bi-directional bandwidth control;

Support static and LACP dynamic port aggregation;

Port mirroring;

Security

Features

User’s Security

Anti-ARP-spoofing;

Anti-ARP-flooding;

IP Source Guard for creating IP+VLAN+MAC+Port binding;

Port Isolation;

MAC address binding to the port and MAC address filtering;

IEEE 802.1x and AAA/Radius authentication;

Device Security

Support the control layer to prevent a variety of DOS attacks and virus attacks against the CPU;

SSHv2 Secure Shell;

SNMP v3 encrypted management;

Login Security IP via Telnet;

Hierarchical management and password protection of users;

Network Security

User-based MAC and ARP traffic examination;

Restrict ARP traffic of each user and force-out user with abnormal ARP traffic;

Dynamic ARP table-based binding;

IP+VLAN+MAC+Port binding;

L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet;

Port-based broadcast/multicast suppression and auto-shutdown risk port;

URPF to prevent IP address counterfeit and attack;

DHCP Option82 and PPPoE+ upload user’s physical location Plain text authentication of OSPF, RIPv2 and BGPv4 packets and MD5cryptograph authentication;

Service Features

ACL

Standard and extended ACL;

Time Range ACL;

Flow classification and flow definition based on source/destination MAC address, VLAN, 802.1p, ToS, DiffServ, source/destination IP(IPv4/IPv6) address, TCP/UDP port number, protocol type, etc;

packet filtration of L2～L7 deep to 80 bytes of IP packet head;

QoS

Rate-limit to packet sending/receiving speed of port or self-defined flow and provide general flow monitor and two-speed tri-color monitor of self-defined flow;

CAR(Committed Access Rate),Traffic Shaping and flow statistics;

Packet mirror and redirection of interface and self-defined flow;

Supports priority marking of ports or custom flows and provides 802.1p, DSCP-priority Remark capability;

Super queue scheduler based on port or self-defined flow. Each port/flow supports 8 priority queues and scheduler of SP, WRR andSP+WRR;

Congestion Avoidance Mechanism, including Tail-Drop and WRED;

IPv4

ARP Proxy;

DHCP Relay;

DHCP Server;

Static Routing;

RIPv1/v2;

OSPFv2/V3;

Equal-cost multi-path routing;

Policy-based routing;

Routing policy

IPv6

ICMPv6;

ICMPv6 Redirection;

DHCPv6;

ACLv6;

IPv6 and IPv4 dual stack;

Multicast

IGMPv1/v2/v3;

IGMPv1/v2/v3 Snooping;

IGMP Filter;

MVR and cross VLAN multicast copy;

IGMP Fast leave;

IGMP Proxy;

PIM-SM/PIM-DM/PIM-SSM;

MLDv2/MLDv2 Snooping;

Reliability

Loop Protection

ERRP or ERPS;

Loopback-detection;

Link Protection

FlexLink (recover-time <50ms);

RSTP/MSTP (recover-time <1s);

LACP (recover-time <10ms);

BFD;

Device Protection

VRRP host backup;

1+1 power hot backup;

Maintenance

Network Maintenance

Port real-time, utilization and transmit/receive statistic

RFC3176 sFlow analysis;

LLDP;

GPON OMCI;

Data Logging and RFC 3164 BSD syslog Protocol;

Ping and Traceroute;

Device Management

Console port, Telnet, SSH management;

Out-band management;

SNMPv1/v2/v3;

RMON (Remote Monitoring)1,2,3,9 groups MIB;

SNTP;

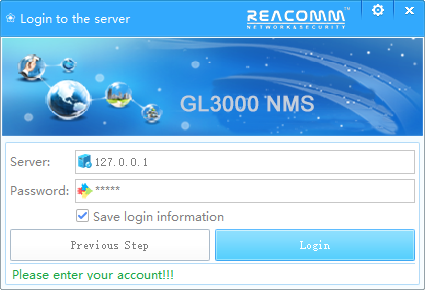

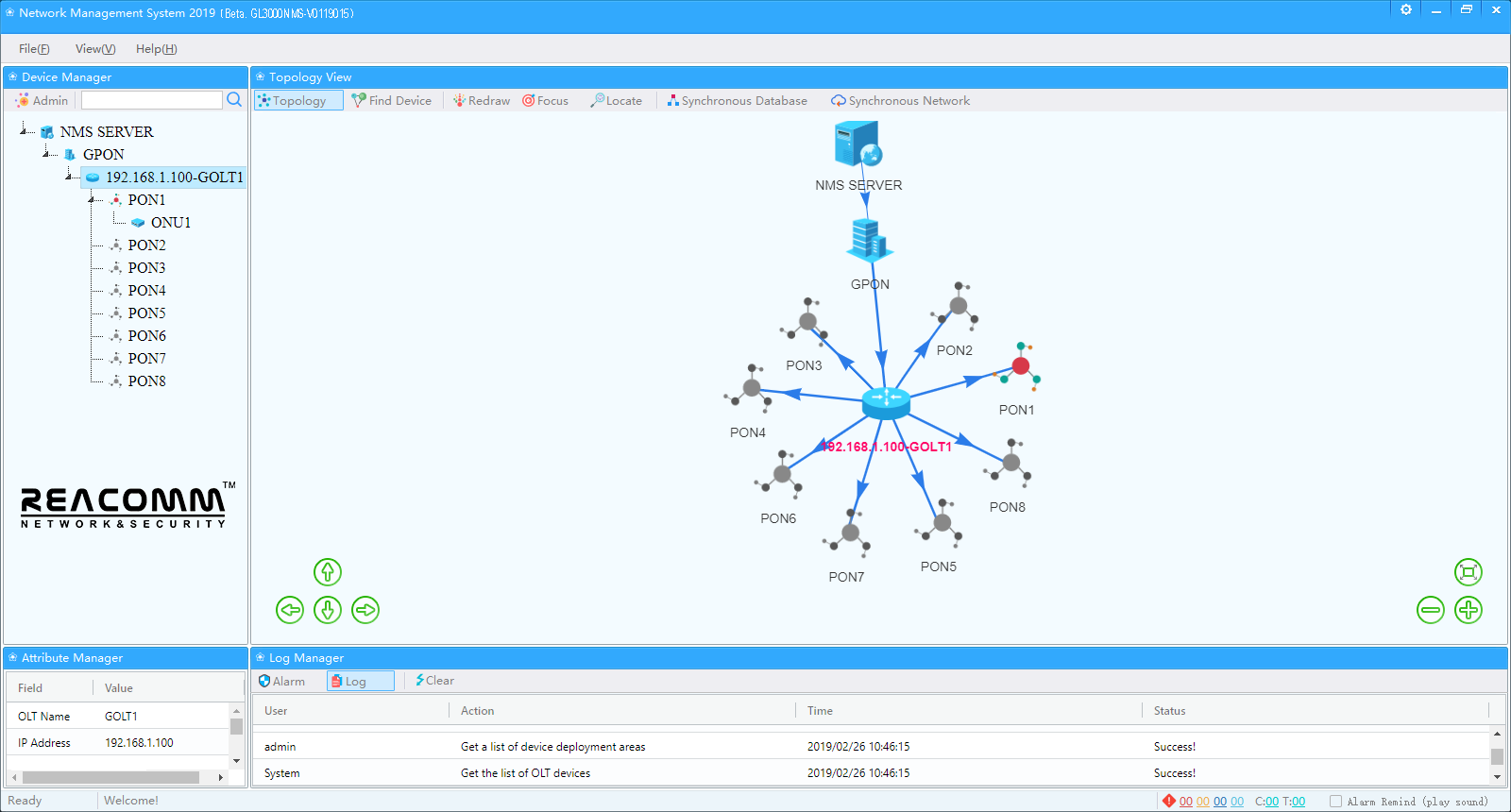

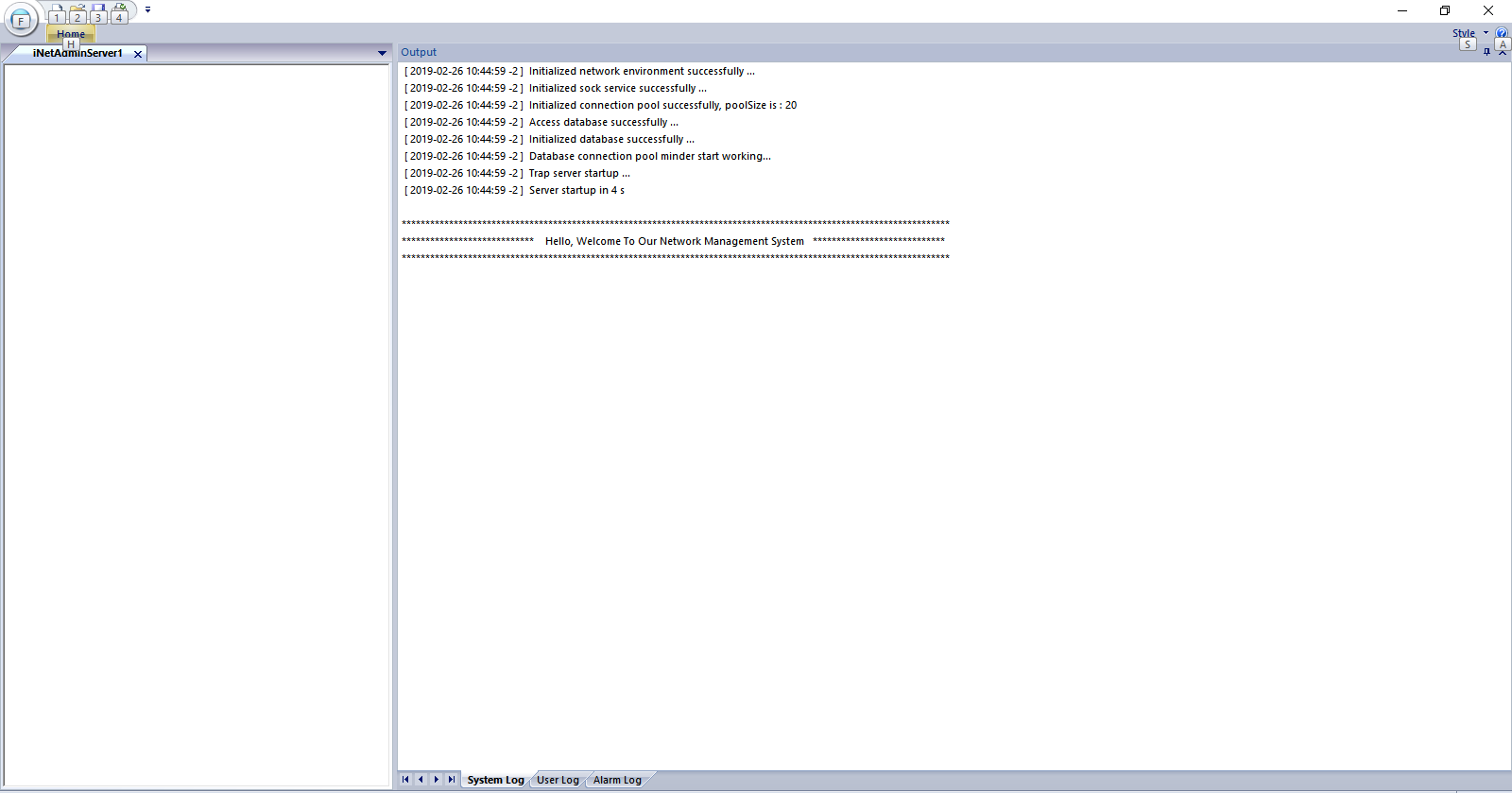

RCMMView network management;

Power Failure Alarm;
