Product

BT 5GE+1SFP Solar PoE Switch

Port

1*10/100/1000Base-TX 60W PoE port(Data/Power)

2*10/100/1000Base-TX 30W PoE port(Data/power)

2*10/100/1000Base-TX auto PoE port(Data/power)

1*1000M SFP

PoE Port

1 port : Reacomm AI HiPoE; output power MAX 60W

2, 3 port: IEEE802.3af/at; output power MAX 30W，

4,5 port: Reacomm Auto AI PoE; supply power for 48V or 24V devices; output power MAX 25W

1-5 Port support PoE(first port output HiPoE_60W)

Switch  Function

1: PoE dog switch

2: VLAN disconnector

3: Ultra remote function switch

4: Port 4 24V / 48V PoE selector switch

5: Port 5 24V / 48V PoE selector switch

PoE Standard

IEEE802.3af/at/PoE++

PoE Power out

MAX 120W

Network Protocol

IEEE 802.3

IEEE 802.3i 10BASE-T

IEEE 802.3u 100BASE-TX

IEEE 802.3ab1000BASE-T

IEEE 802.3x

IEEE 802.3z 1000BASE-X

IEEE 802.3af/at/PoE++

Reacomm AI PSE

PoE Standard

IEEE802.3af/at/PoE++

Port Specification

10/100/1000BaseT(X) Auto

Transmission Mode

Store and Forward(full wirespeed)

Bandwidth

12Gbps

Packet Forwarding

8.64Mpps

MAC Address

2K

Buffer

2.5M

Transmission Distance

10BASE-T: Cat3,4,5 UTP(≤250 meter)

100BASE-TX: Cat5 or later UTP(150 meter)

1000BASE-TX: Cat6 or later UTP(150 meter)

Speed

Ethernet 10Mbps half-duplex, 20Mbps full-duplex

Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex

Gigabit Ethernet 2000Mbps full-duplex

Power Pin

HiPoE port  Power supply: 1245+ 4578-

48V Power supply: 12+36-

24V Power supply: 45+78-

Charging function switch

1: Power switch

2: Battery type selector switch

3: Battery voltage selector switch

4: 14.8/29.6v lithium switch

Power input

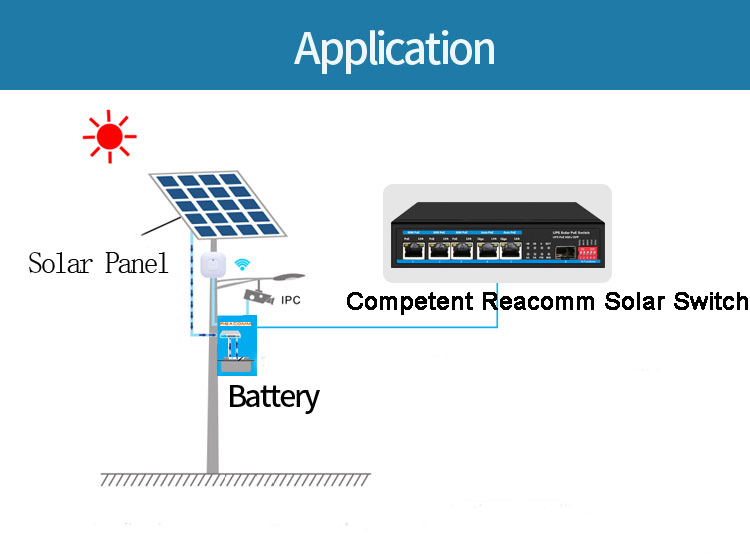

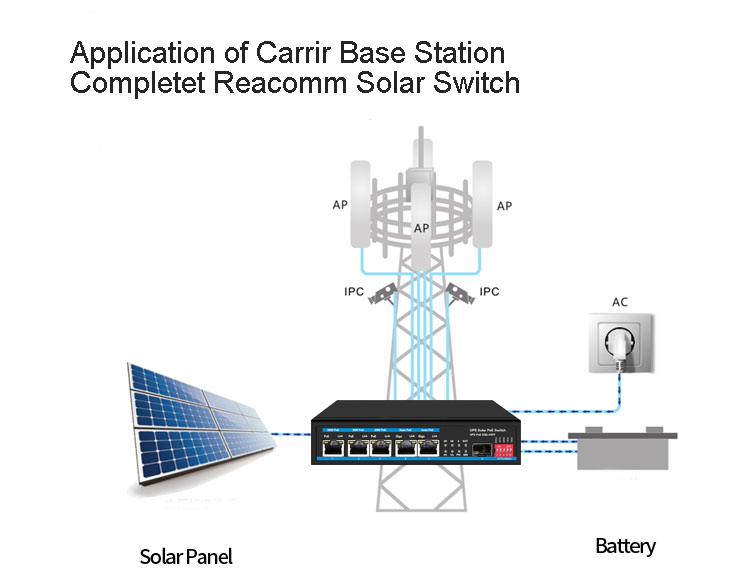

Support 12V solar panel input(≤57V) or with12V batteries

Support 24V solar panel input(≤57V) or with 24V batteries

Charging function

Integrated MPPT automatic charging, maximum efficiency 98%, maximum charging current 15A

Integrated battery protection function

Automatic Battery Voltage Recognition

Integrated Lithium Battery Automatic Activation System

Integrated Low Volume Start-up Protection System

Battery

Supporting 12V or 24V lead-acid batteries  MAX200AH, 15A

Supporting 12.6V or 25.2V lithium batteries   MAX200AH 50AH, 15A

Supporting 14.8V or 29.6V lithium batteries  MAX 200AH, 15A

Power Output

12V solar panel power in MAX 800W;

24V solar panel power in MAX 800W

DC panel power in MAX800W

LED Indicator

PW: Power LED

BIN: Battery charging indicator

BOT: Battery discharging indicator

6: (SFP LED)

4A-5A: Port 4-5 48V PoE ON light

4B-5B: Port 4-5 24V PoE ON light

CPU: System operation LED

VOUT: PoE output VOL normal indicator

SIN: Solar panel input indicator

VIN: DC input indicator

Operating Temperature/Humidity

-10～+60°C; 10%～90%  RH Non coagulation

Storage Temperature/Humidity

-40～+85°C; 5%～90% RH Non coagulation

Product size/

Packing size(L*W*H)

158mm*142mm*35mm

300mm*175mm*100mm

N.W(kg)

0.7kg(solar panel,battery and power adapter excluded in the product)

Installation

Desktop

Lightning Protection level

3KV 8/20us;

IP30

Certificate

CE mark, commercial; CE/LVD EN60950;
FCC Part 15 Class B; RoHS;

Warranty

Whole device for 1 year(Accessory not included)
