REACOMM Industrial Ethernet and Fiber Solution is highly-reliable and secure to ensure continuous operation in harsh environments such as factories, outdoors, and places at extreme temperatures. The Industrial Ethernet upgrades traditional, proprietary factory-floor networks to a low-cost, high-performance, and scalable architecture. REACOMM Industrial Ethernet switches and Industrial Media Converters integrated 100/1000 Fiber technology with reliable and long-reach data transmission.

Industrial Switch Key features:

l IP40 metal case protection

l DIN rail and wall mount design

l Redundant Power Design - 12 to 48V DC, redundant power with polarity reverse protect function- AC 24V power adapter acceptable

l Supports 6000V DC Ethernet ESD protection

l POE features fully support IEEE802.3af/at/bt

l PoE feature optional with 60W Max output

l -40 to 75℃ operating temperature

l Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)

This REACOMM Industrial Power over Ethernet (PoE) Solution includes Industrial Rack-mount PoE Switches, DIN-rail PoE Switches, Industrial PoE Media Converters, Industrial PoE Extenders/Splitters/Injectors, and Outdoor PoE compliant Wireless Access Points (APs), compliant with standard IEEE 802.3af and IEEE 802.3at and able to transmit data and power simultaneously at the distance up to 100 meters. With power and data over Ethernet from one unit, the Industrial PoE series can reduce cables deployment and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. A wire that carries both data and power lowers the installation costs, simplifies the installation effort and eliminates the need for electricians or extension cords.

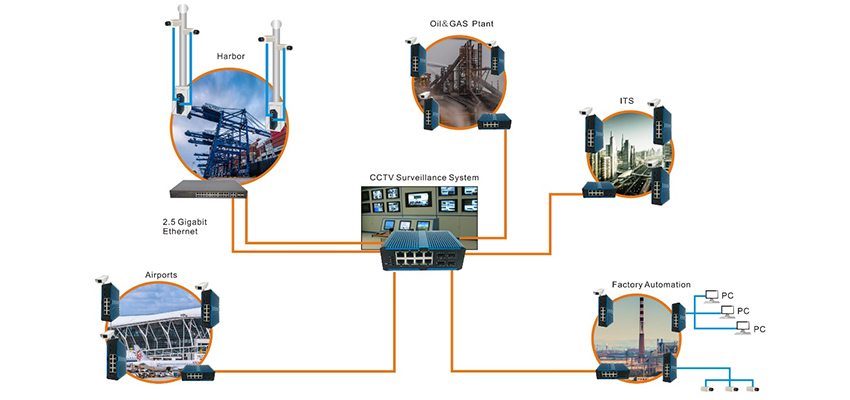

Solutions:
